Back-Connected Motherboard Support
Supports back-connected motherboard design, freeing up space at the front of the case and providing 33-35mm of space behind the motherboard tray for easier cable management.
Basic Cooling Configuration
Equipped with a single 120mm fan, it provides essential cooling while enhancing system airflow for improved performance and aesthetics.

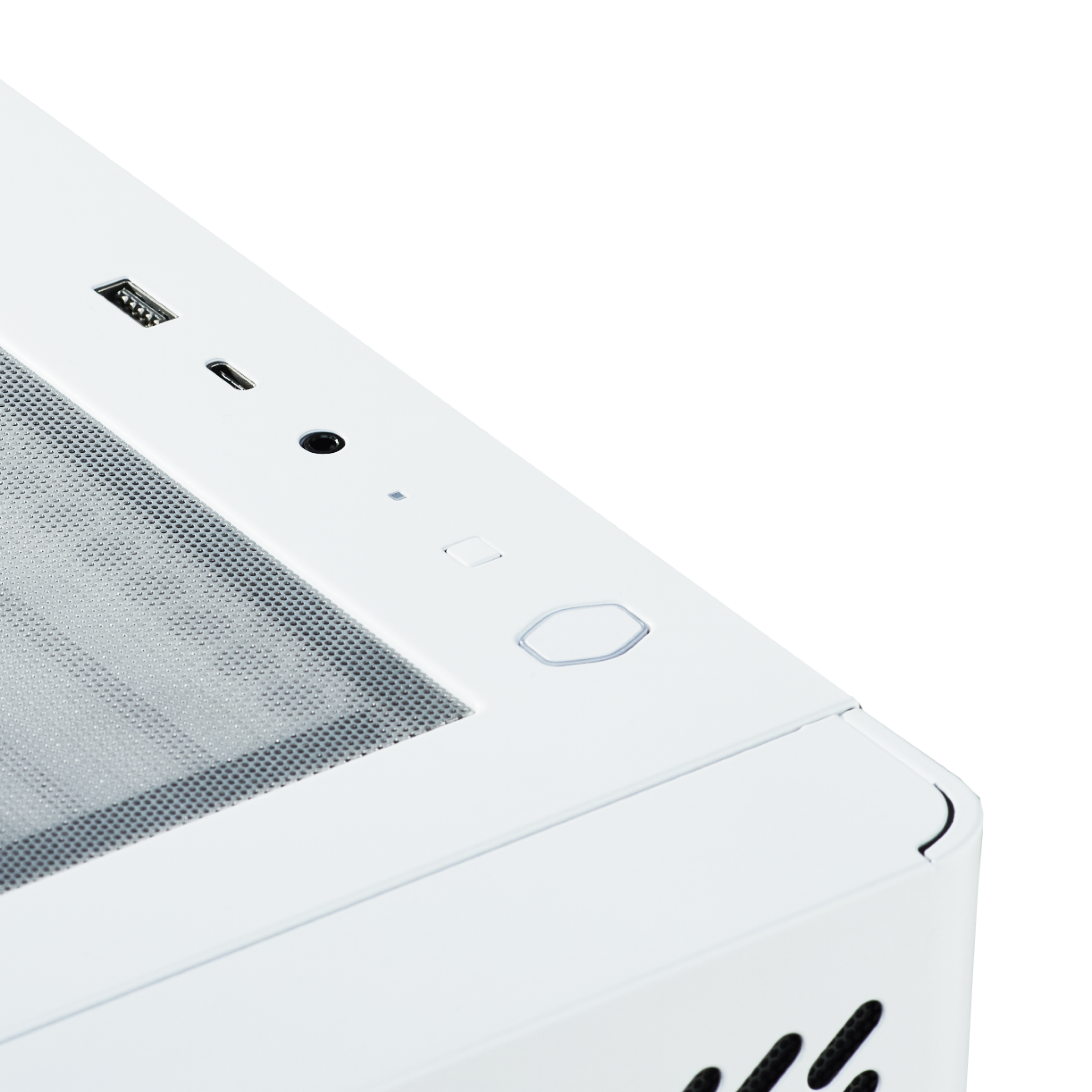

USB Type-C Support
USB Type C port built into the I/O panel allows multi-purpose, streamlined data transmission.
ROOM FOR UPDATES
Supports a 410mm GPU, a 170mm CPU cooler, and ample space for future hardware upgrades.

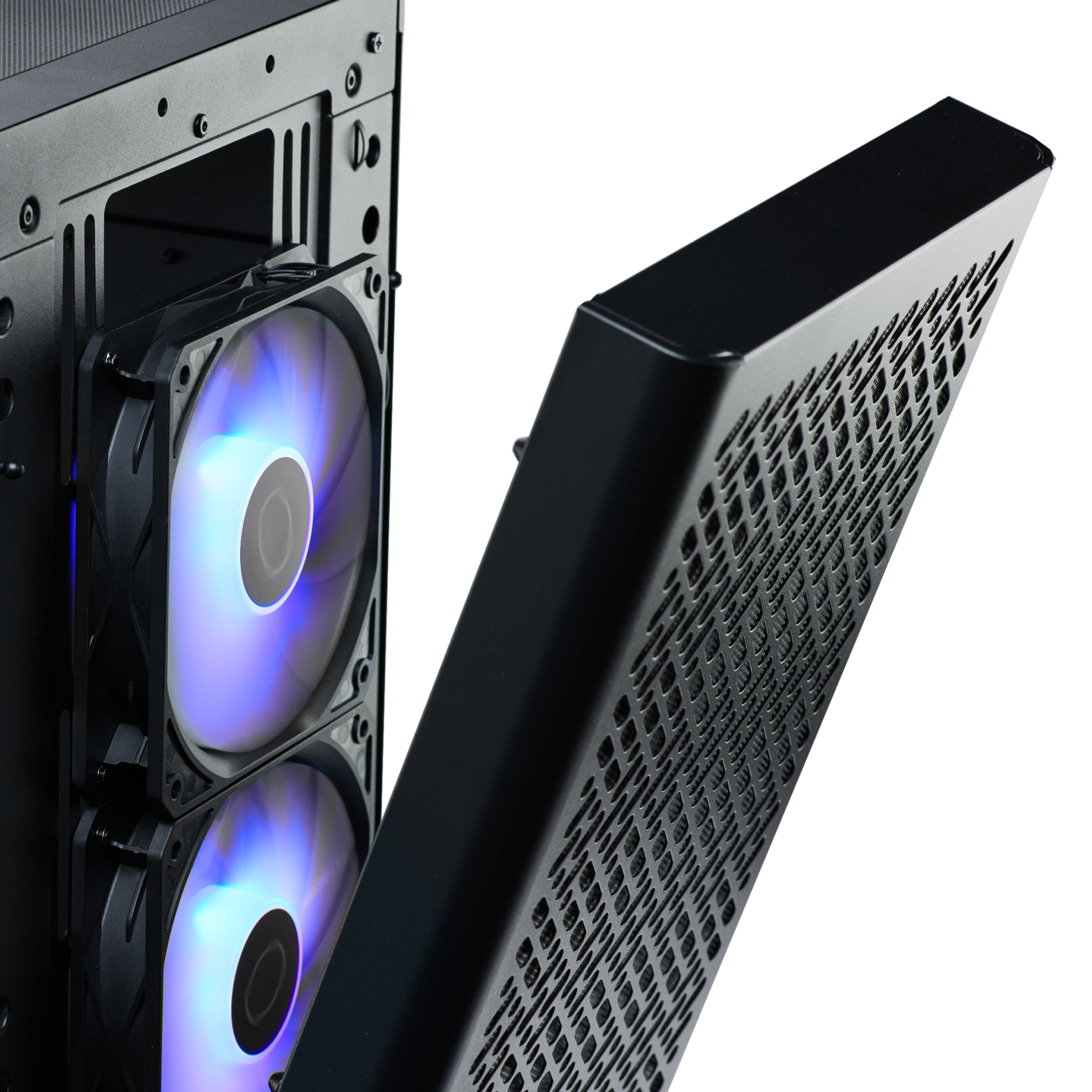

Versatile Thermal Options
Supports up to seven 120mm fans and either a top-mounted 360mm radiator or a front-mounted 420mm radiator, offering hyper-effective CPU thermal performance.

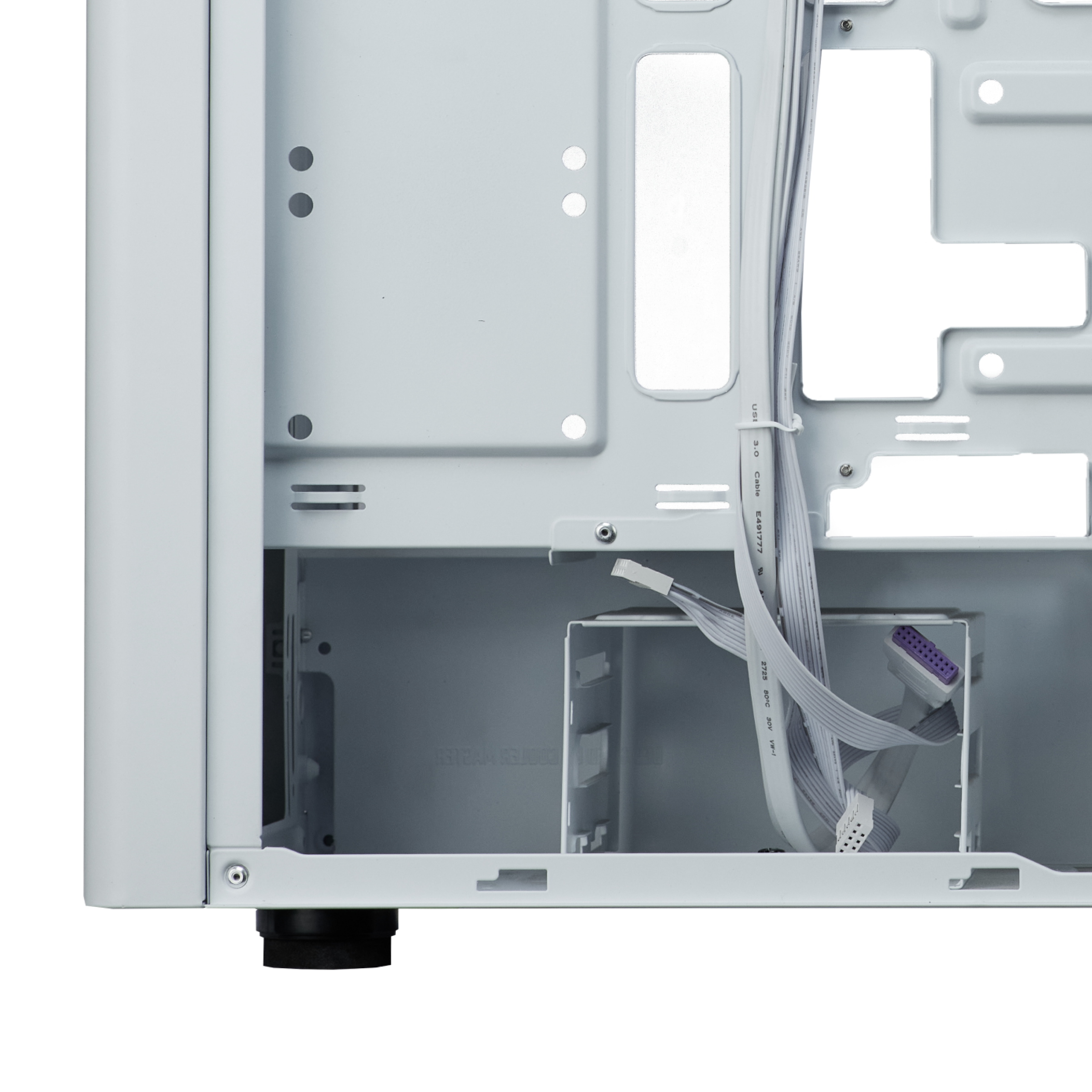

Removable HDD Cage
The HDD cage is completely removable, providing better access during assembly and system upgrades.

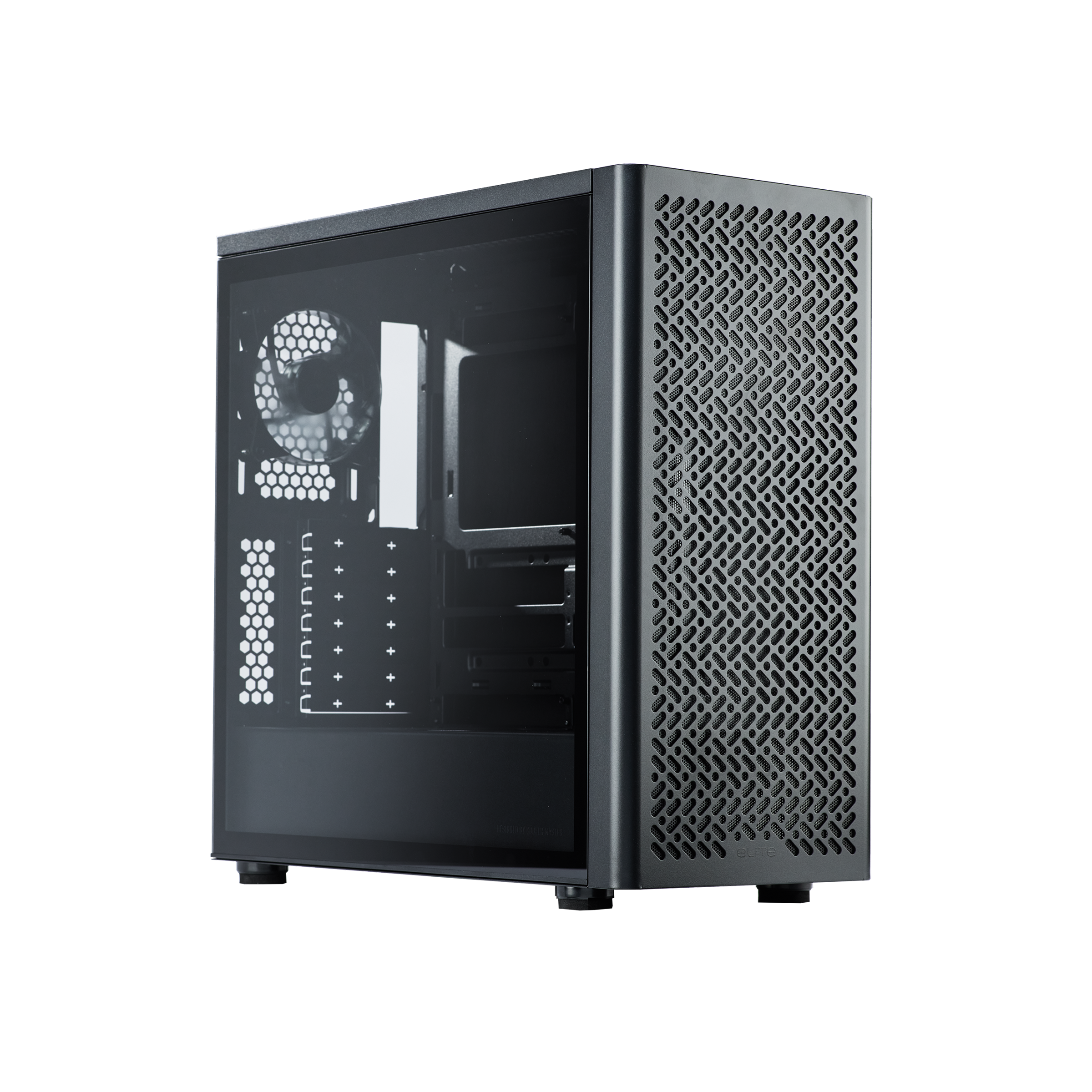

| Product Name | ELITE 502 LITE |

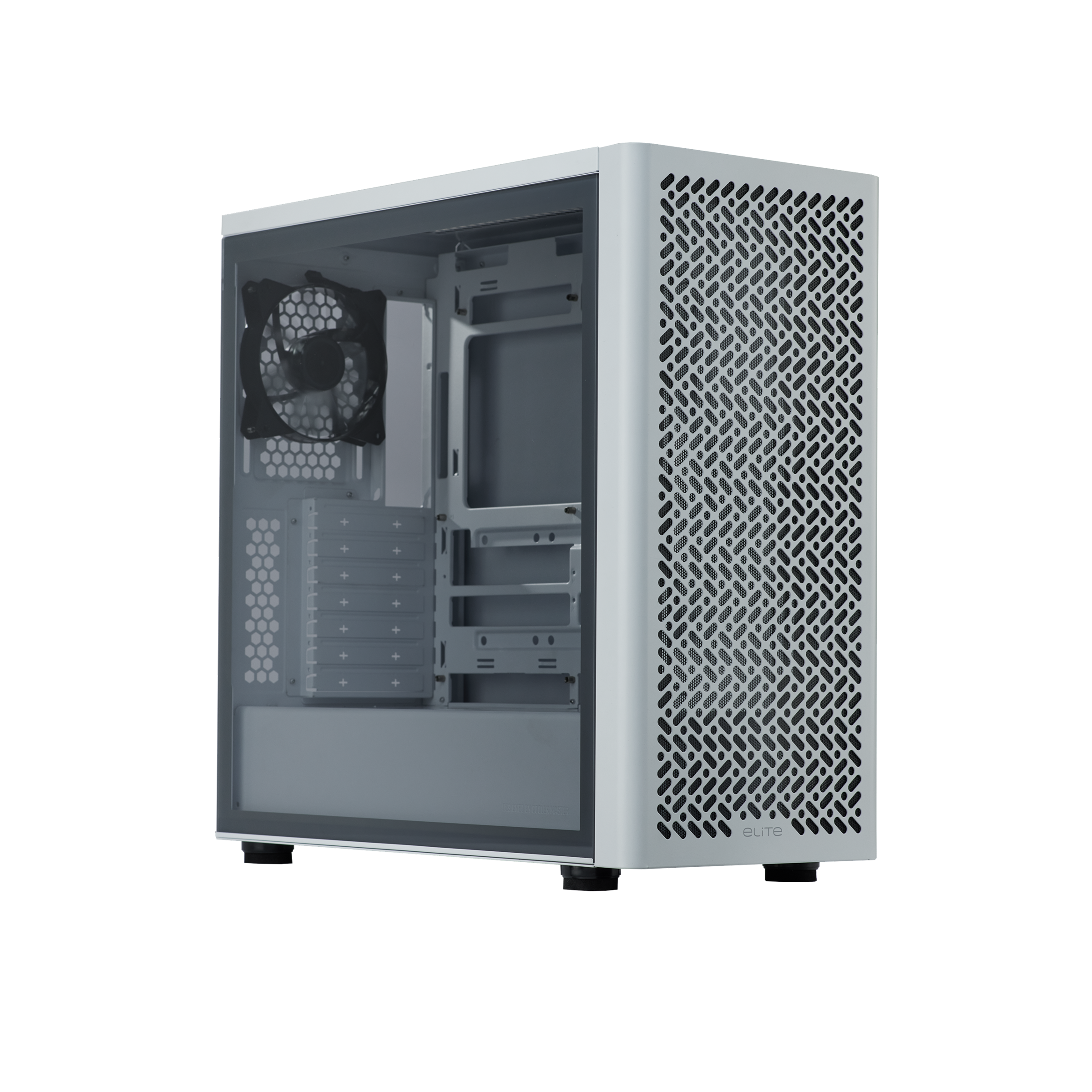

| Product Name | ELITE 502 LITE White |
| Model Number | ELITE 502 LITE: E502L-KGNN-S00 |
| Model Number | ELITE 502 LITE White: E502L-WGNN-S00 |
| Color(s) | ELITE 502 Lite: Black / ELITE 502 Lite White: White |
| Materials - Exterior | Steel |
| Materials - Right Side Panel | Steel |
| Materials - Left Side Panel | TG |
| Dimensions (L x W x H) | 474 x 230 x 481 mm(Incl. Protrusions), 465 x 230 x 465 mm(Excl. Protrusions) |
| Volume (incl. Protrusions) | 49.73 L |
| Motherboard Support | ITX / Micro ATX / ATX (Supporting Back-connector Motherboard) / E-ATX (*up to 12"x10.9"/ 30.5cmx27.7cm motherboards, may impact cable management) |
| Expansion Slots | 7 |
| 5.25" Drive Bays | N/A |
| 3.5" Drive Bays | 2 |
| 2.5" Drive Bays | 2 (Max.6) |
| I/O Panel - USB Ports | 1x USB 3.2 Gen1 Type A, 1x USB 3.2 Gen1 Type C |
| I/O Panel - Audio In / Out | 3.5 mm Combo x 1 |
| Fan Support - Front | 3x 120 mm / 3x 140 mm |
| Fan Support - Top | 3x 120 mm / 2x 140 mm |
| Fan Support - Rear | 1x 120mm |
| Pre-installed Fans - Front | N/A |
| Pre-installed Fans - Top | N/A |
| Pre-installed Fans - Rear | 1x 120mm |
| Radiator Support - Front | 120 / 140 / 240 / 280 / 360 / 420 mm (Limit: 457*140*27 mm) |
| Radiator Support - Top | 120 / 140 / 240 / 280 / 360mm |
| Radiator Support - Rear | 120mm |
| Clearance - CPU Cooler | 170mm |
| Clearance - PSU | 170 / 210mm (w/o HDD Cage) |
| Clearance - Graphics Card (installed 3.5"HDD BRK) | 360 / 410 mm (w/o front radiator) |
| Cable Routing - Behind Motherboard Tray | 33-35 mm |
| Dust Filters | Top, Front, Bottom |
| Power Supply Support | ATX |
| Warranty | 2 years |
