Tool-less Intake Panel

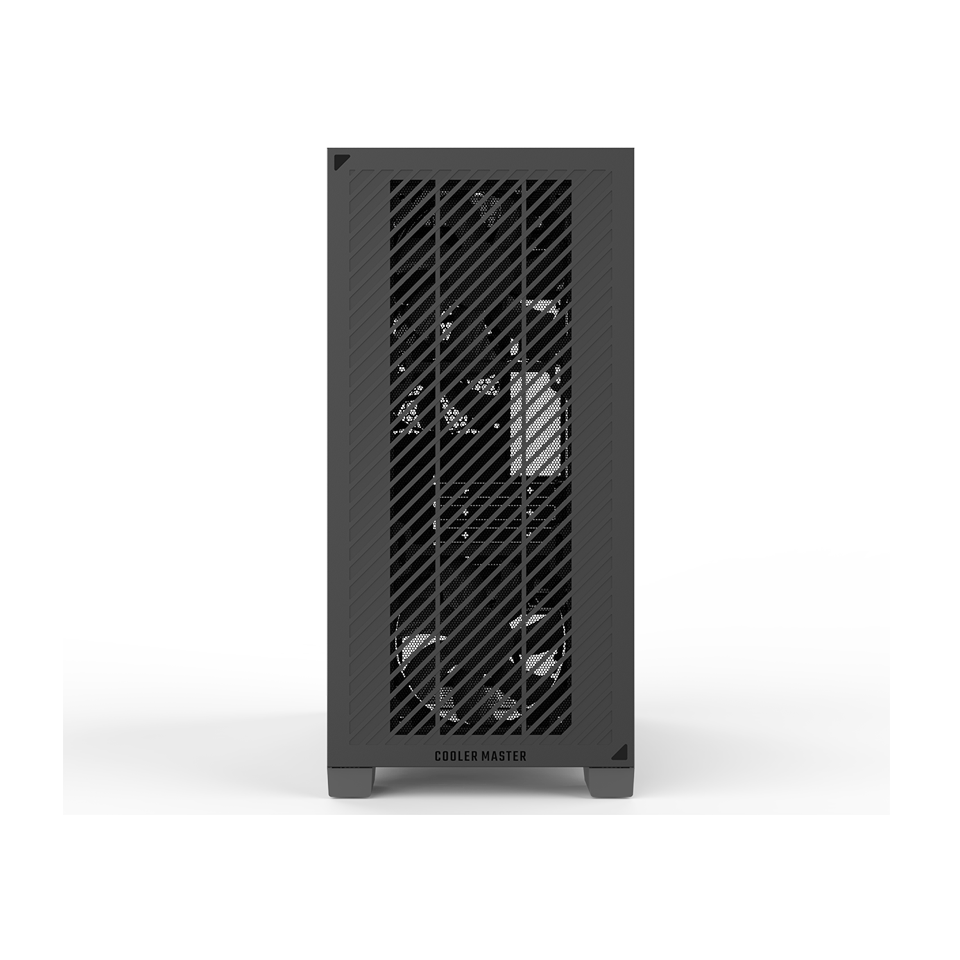

Constructed with a substantially large, unrestricted intake grill to ensure that the system runs cool and efficiently. The front panel could be easily removed by magnets, making it easier for daily maintenance.
Versatile Cooling Options
Supports up to six fans and 280mm radiator to ensure that performance is not compromised.
Large Support, Minimized Footprint
Despite its compact size, Elite 301 lite supports up to 365mm graphics cards, 163.5mm CPU Coolers, providing solid potential for future upgrades.
Breathable Power Supply Shroud
The PSU cover is ventilated on top of the power supply location, allowing actively cooled units to be installed in multiple orientations, while maintaining support for passively cooled power supplies.
| Model Number | E301L-KNNN-S00 |
| Materials | Steel, Plastic |
| Materials | Steel (Left Side Panel) |
| Dimensions (L x W x H) | 390 x 203.5 x 430mm incl protrusions / 377 x 203.5 x 410mm excl protrusions |
| Motherboard Support | ITX / Micro ATX |
| Volume | 34.13L (incl. Protrusions) |
| Expansion Slots | 4 |
| 3.5" Drive Bays | 1 |
| 2.5" Drive Bays | 1 (Max. 2) |
| I/O Panel | 1x USB 3.2 Gen 1 Type-A |
| I/O Panel | 1x USB 3.2 Gen 1 Type-C |
| I/O Panel - Audio In / Out | 1x 3.5mm Combo |
| Pre-installed Fan(s) - Front | 2x 120mm Black Fan |
| Pre-installed Fans - Rear | 1x 120mm Black Fan |
| Fan Support - Front | 3x 120mm |
| Fan Support - Top | 2x 120mm / 2x 140mm |
| Fan Support - Rear | 1 x 120mm |
| Radiator Support - Front | 120 / 240mm |
| Radiator Support - Top | 120 / 140 / 240 / 280mm |
| Radiator Support - Rear | 120mm |
| Clearance - CPU Cooler | 163.5mm |
| Clearance - PSU | 160mm / 6.29" |
| Clearance - GFX | 365mm (without front fans & radiator) |
| Cable Routing | 18.5mm |
| Dust Filters | Top / Bottom / Front |
| Power Supply Support | ATX |
| Warranty | 2 years |
