CMP 520L
Description

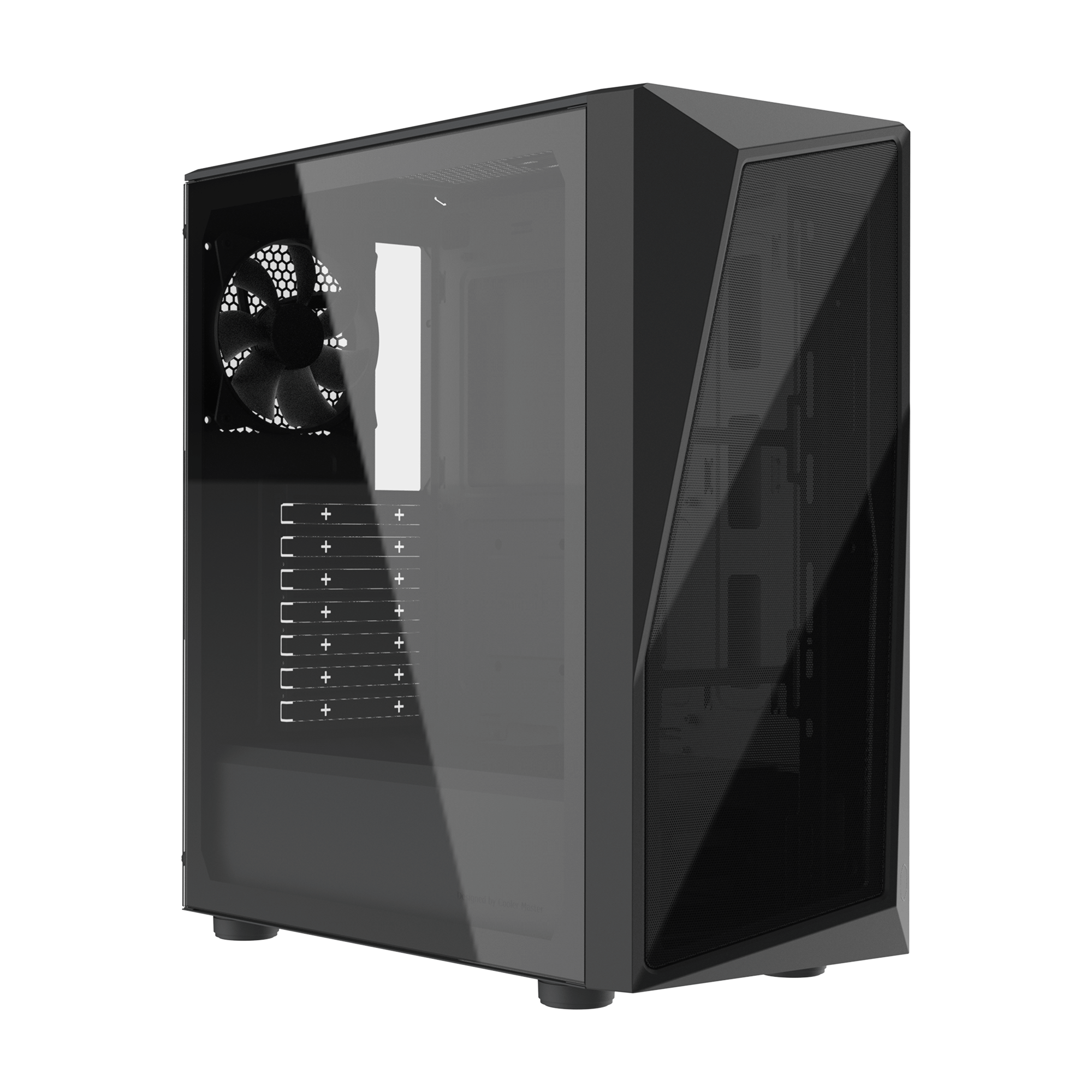

CMP 520L's asymmetrical front panel design frames any fans that the user chooses to install as unique centerpieces on the build.
Mesh Geode Front Panel
Versatile Cooling Options
Full Black Coating & PSU Cover
Breathable Power Supply Shroud
- Model Number: CP520-KGNN-S03
- Exterior Color: Black
- Materials - Exterior: Steel, Plastic
- Materials - Left Side Panel: Tempered Glass
- Dimensions (L x W x H): 439 x 204 x 463mm (Incl. Protrusions), 432 x 204 x 448mm (Excl. Protrusions)
- Volume: 41.34L (Excl. Protrusions)
- Motherboard Support: Mini-ITX, Micro-ATX, ATX
- Expansion Slots: 7
- 5.25" Drive Bays: 0
- 2.5" / 3.5" Drive Bays (Combo): 2
- 2.5" Drive Bays: 2
- I/O Panel - USB Ports: 1x USB 3.2 Gen 1 Type A, 1x USB 2.0
- I/O Panel - Audio In / Out: 1x 3.5mm Headset Jack (Audio+Mic)
- Pre-installed Fans - Rear: 1x MasterFan Lite
- Fan Support - Top: 2x 120mm, 2x 140mm
- Fan Support - Front: 3x 120mm, 2x 140mm
- Fan Support - Rear: 1x 120mm
- Radiator Support - Top: 120 / 240mm* (*RAM height below 35mm)
- Radiator Support - Front: 120 / 140 / 240 / 280mm
- Radiator Support - Rear: 120mm
- Clearance - CPU Cooler: 161mm
- Clearance - PSU: 160mm
- Clearance - GFX: 350mm (w/o front fans & radiator)
- Cable Routing: 18.5mm
- Dust Filters: Top, Bottom
- Power Supply Support: Bottom Mount, ATX
- Warranty: 2 years
- Size: Mid Tower
- Series: CMP Series
- Back Connector Motherboard Support: No
