CMP 520
Description

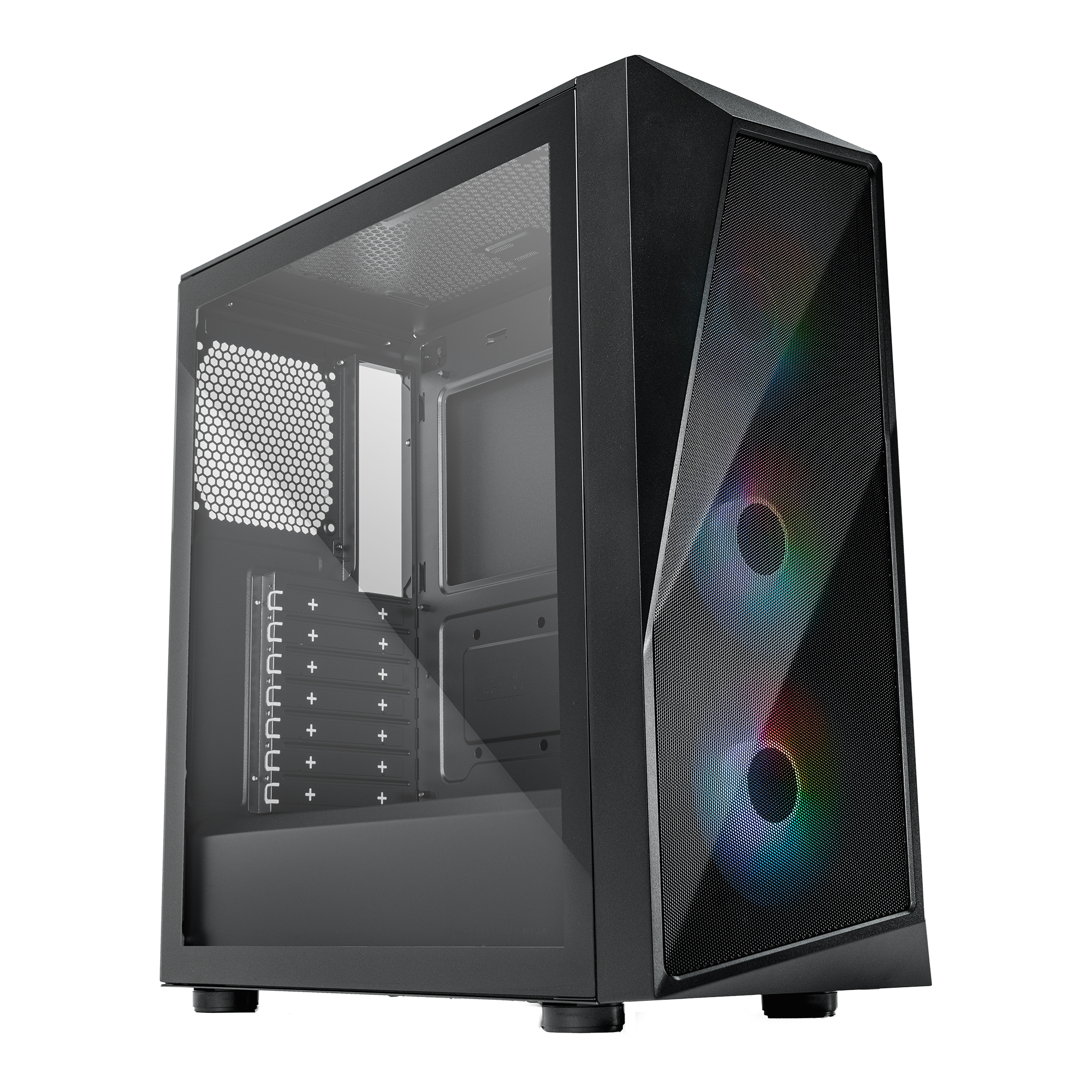

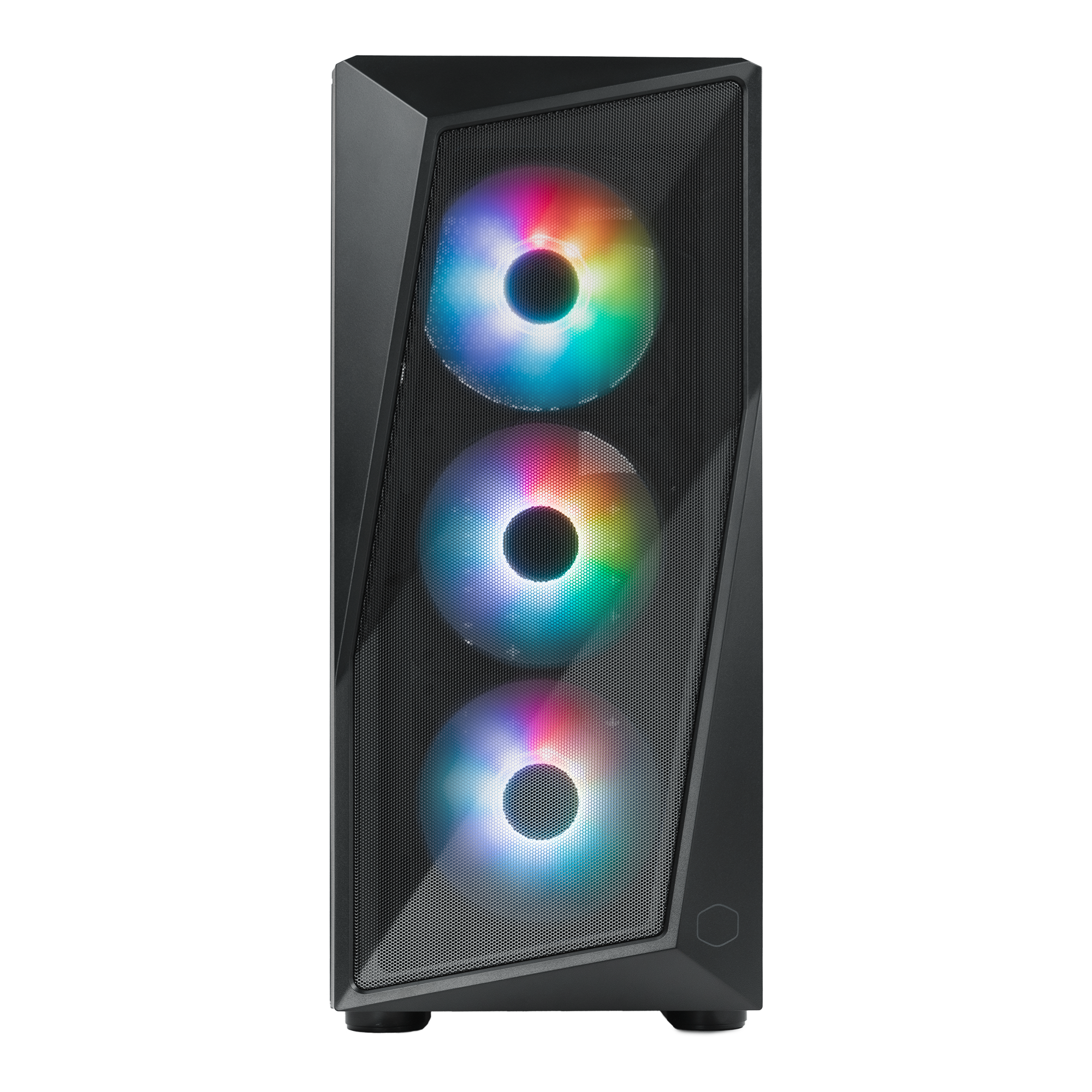

CMP 520's asymmetrical front panel design frames the pre-installed three 120mm ARGB fans as unique centerpieces on the build.
Three 120mm ARGB Fans Included
Mesh Geode Front Panel
Versatile Cooling Options
Full Black Coating & PSU Cover
Breathable Power Supply Shroud
- Model Number: CP520-KGNN-S00
- Exterior Color: Black
- Materials - Exterior: Steel, Plastic
- Materials - Left Side Panel: Tempered Glass
- Dimensions (L x W x H): 439 x 204 x 463mm (Incl. Protrusions), 432 x 204 x 448mm (Excl. Protrusions)
- Volume: 41.34L (Excl. Protrusions)
- Motherboard Support: Mini-ITX, Micro-ATX, ATX
- Expansion Slots: 7
- 5.25" Drive Bays: 0
- 2.5" / 3.5" Drive Bays (Combo): 2
- 2.5" Drive Bays: 2
- I/O Panel - USB Ports: 1x USB 3.2 Gen 1 Type A, 1x USB 2.0
- I/O Panel - Audio In / Out: 1x 3.5mm Headset Jack (Audio+Mic)
- ARGB Controller: ARGB Fans Hub
- Pre-installed Fans - Top: N/A
- Pre-installed Fans - Front: 3x CF120 ARGB
- Pre-installed Fans - Rear: N/A
- Fan Support - Top: 2x 120mm, 2x 140mm
- Fan Support - Front: 3x 120mm, 2x 140mm
- Fan Support - Rear: 1x 120mm
- Radiator Support - Top: 120 / 240mm* (*RAM height below 35mm)
- Radiator Support - Front: 120 / 140 / 240 / 280mm
- Radiator Support - Rear: 120mm
- Clearance - CPU Cooler: 161mm
- Clearance - PSU: 160mm
- Clearance - GFX: 350mm (w/o front fans & radiator)
- Cable Routing: 18.5mm
- Dust Filters: Top, Bottom
- Power Supply Support: Bottom Mount, ATX
- Warranty: 2 years
- Size: Mid Tower
- Series: CMP Series
- Back Connector Motherboard Support: No
