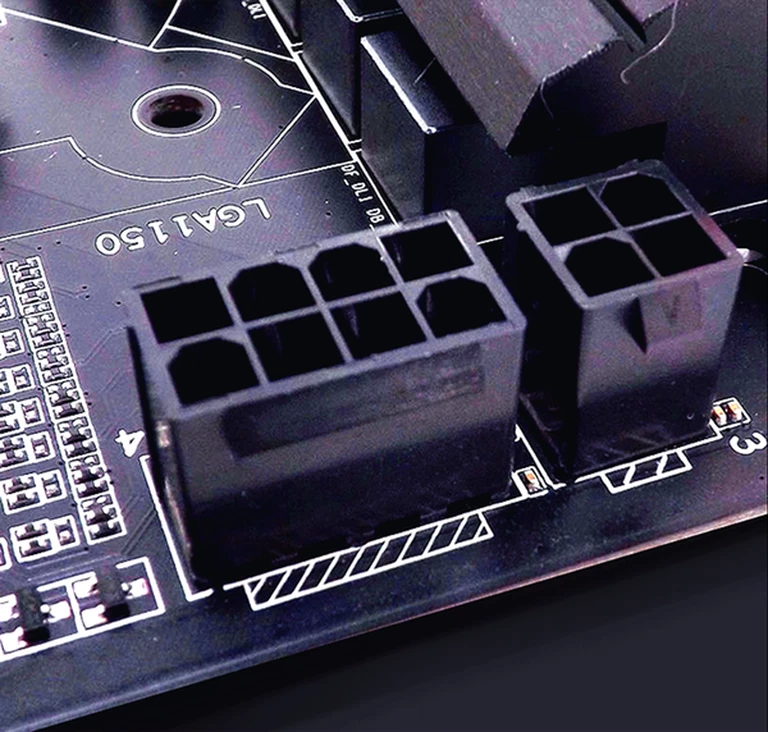

THE FUTURE STARTS NOW
This power supply unit contains a semi-digital platform. This allows you to connect the PSU directly to the motherboard via an included USB 3.0 cable.

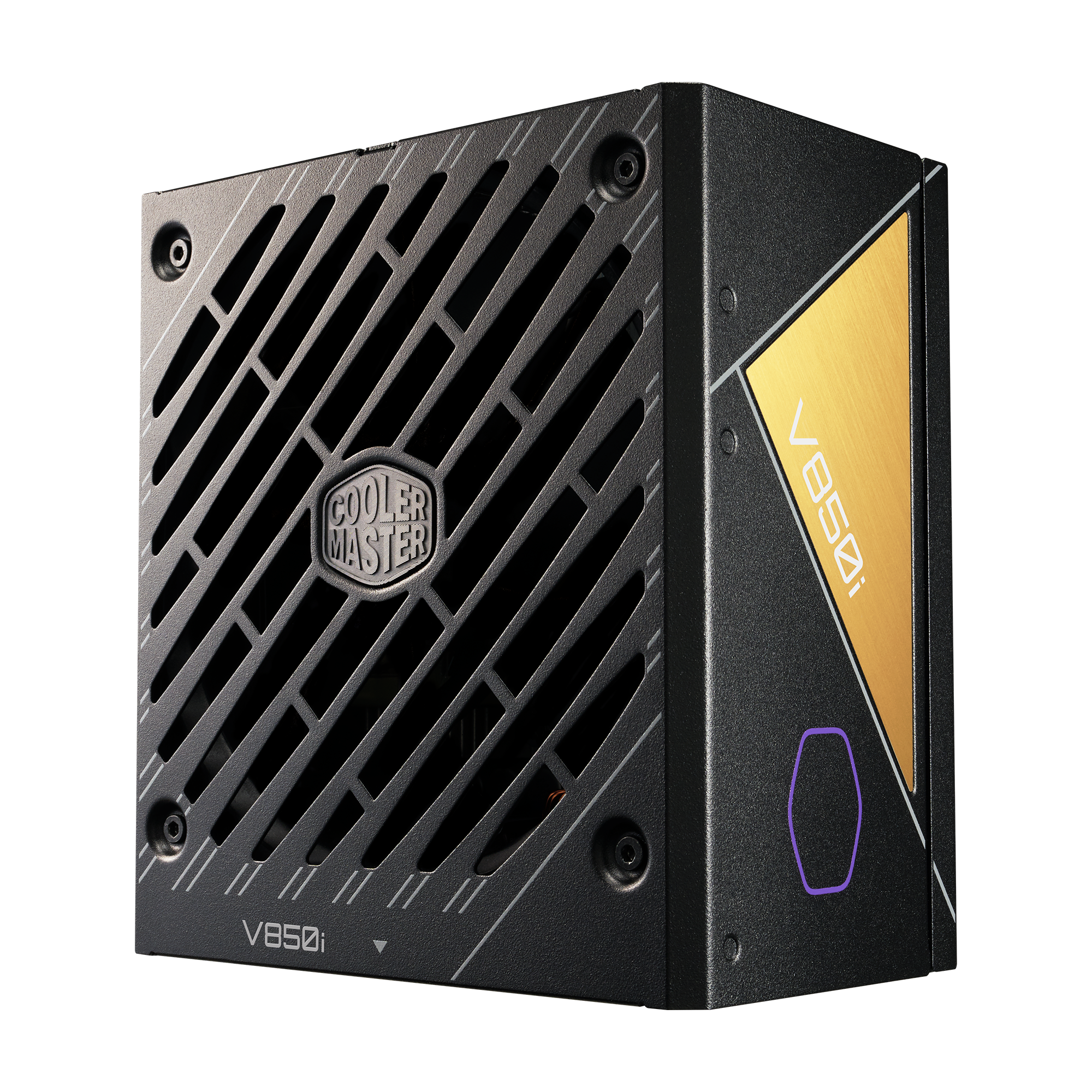

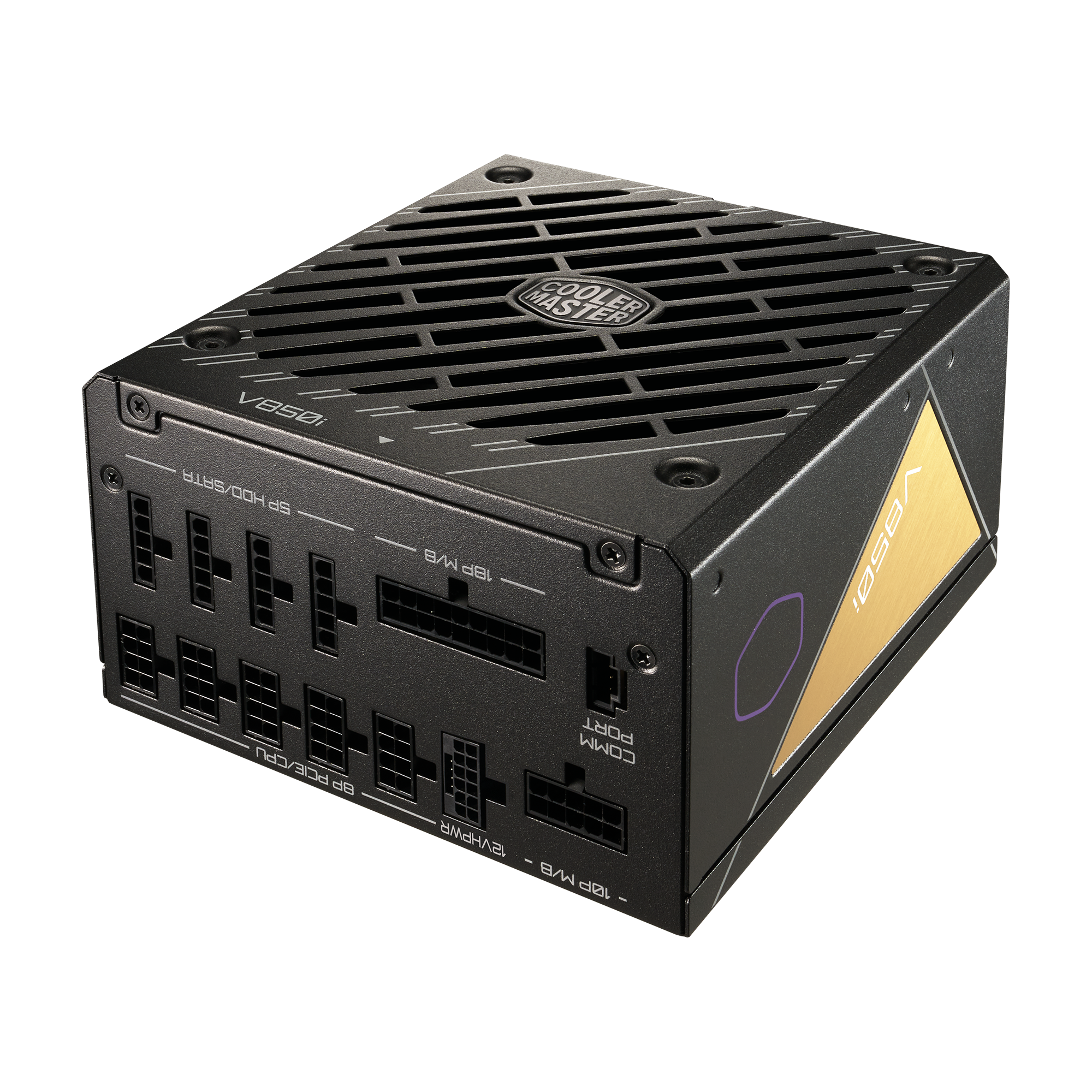

Fully Modular 80 PLUS Gold Digital Power Supply
V850 Gold i multi
Semi-Digital Platform
80 PLUS Gold Certified
Fully support ATX3.0
STCM (Smart Thermal Control Mode)

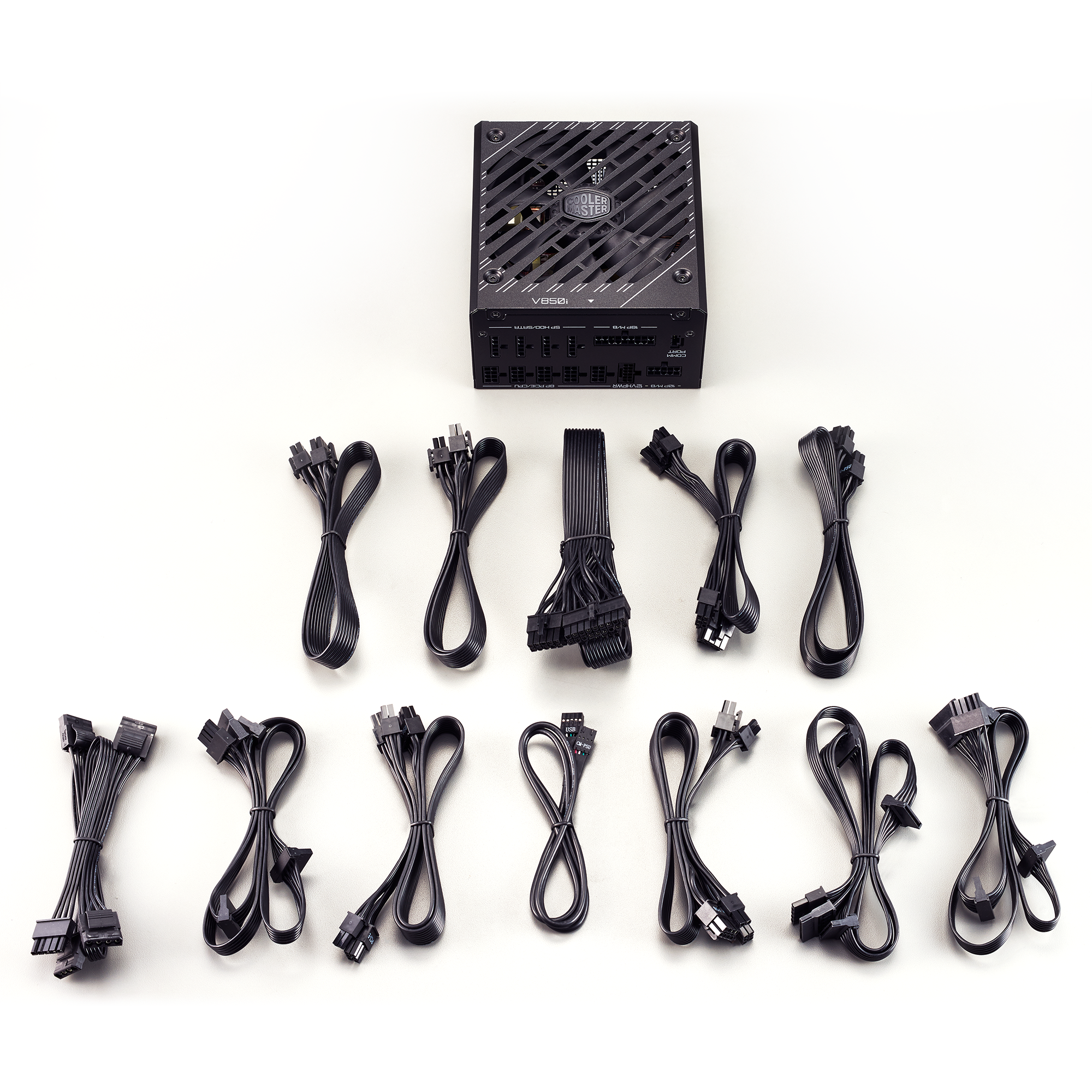

Fully Modular Cable Management
10 Year Warranty
THE POWER IS YOURS
With the digital platform you can monitor performance in real time, tracking details such as fanspeed, temperature, and current load. You can even get readouts of performance data collected over time. Make the most of your PSU by taking control of it directly.
FULLY SUPPORT ATX3.0

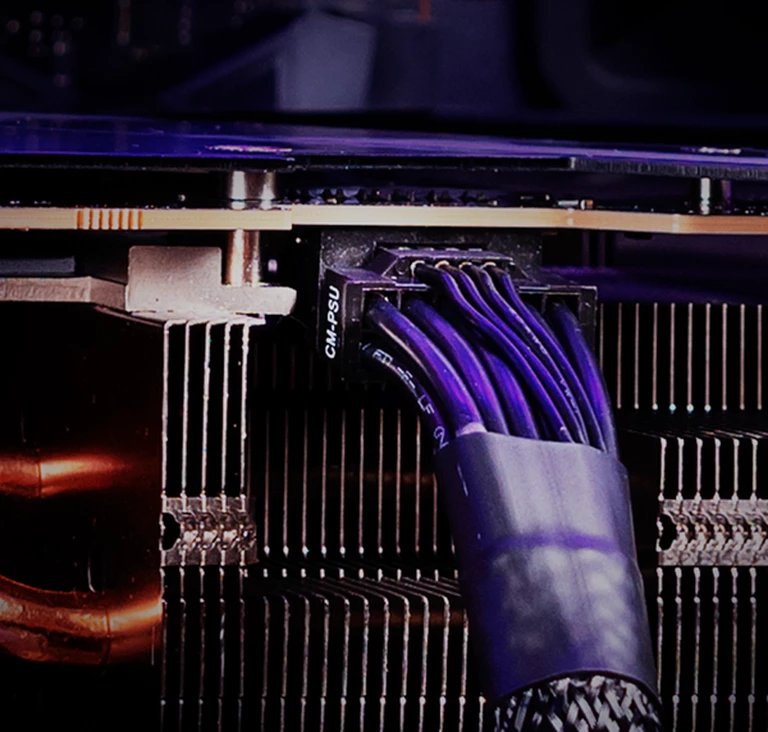

Compliant with ATX3.0 standard and 12VHPWR connector, the V Gold i can support the peak power up to 200% more than rated power.

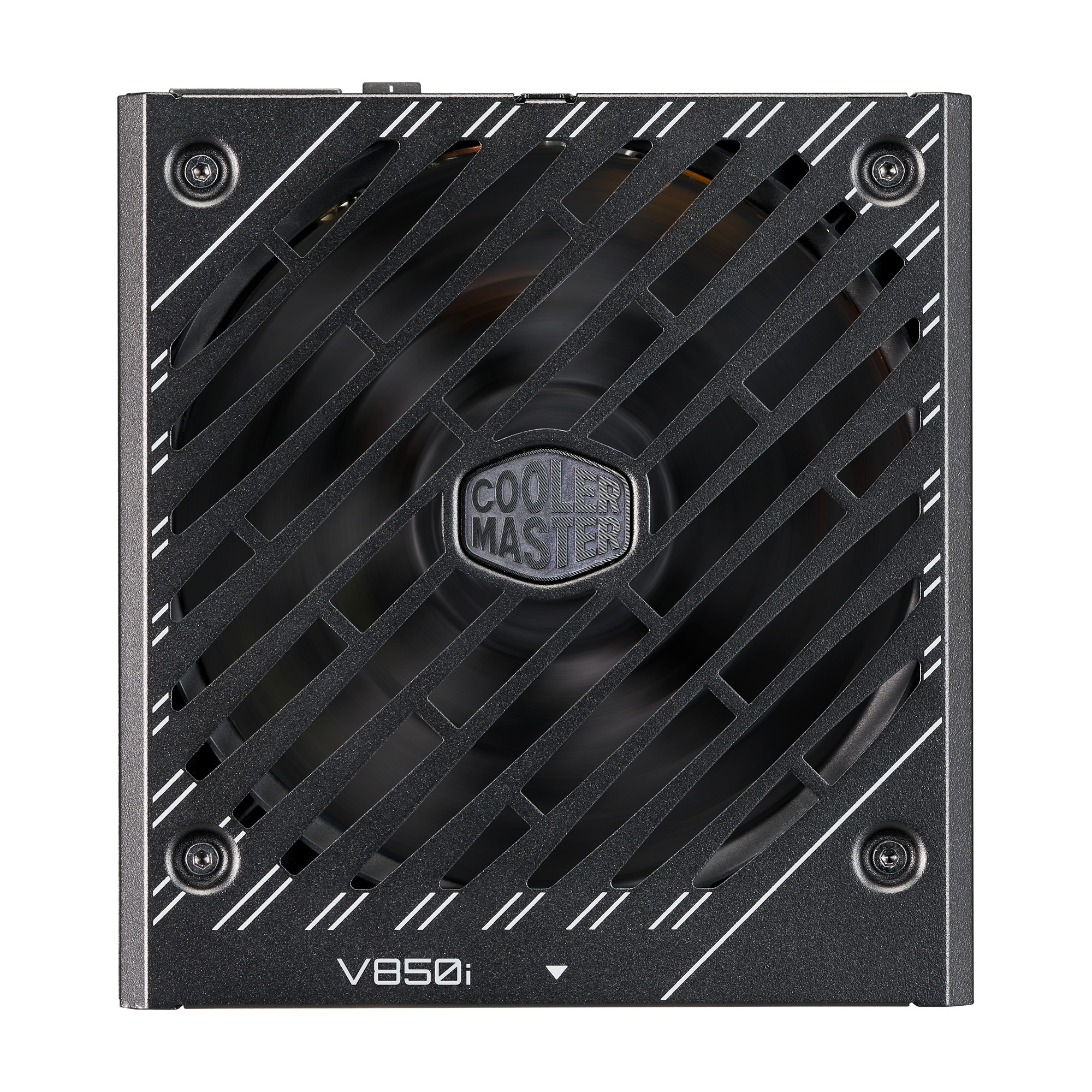

135mm silent fan
BUILD YOUR WAY
BUILT TO LAST
PSU CALCULATOR
Need help choosing the right power supply for your system? Try out our easy to use, comprehensive PSU calculator.
- Category Above 750W
- Modular Fully Modular
- PFC Active PFC
- Input Frequency 50-60Hz
- ErP 2014 Lot 3 Yes
- ATX 24 Pin Connectors 1
- EPS 4+4 Pin Connectors 1
- Fan Bearing FDB
- Power Good Signal 100 - 150 ms
- EPS 8 Pin Connector 1
- 12VHPWR Connector 1
- USB Connectors 1
- 80 PLUS Rating 80 PLUS Gold
- MTBF >100,000 Hours
- 80 Plus Efficiency Gold
- SATA Connectors 12
- Operating Temperature 0-50°C
- Fan Size 135mm
- Input Voltage 100-240V
- Peripheral 4 Pin Connectors 4
- Protections OVP
- Protections OPP
- Protections SCP
- PCI-e 6+2 Pin Connectors 3
- Protections UVP
- Series V Gold Series
- Protections OTP
- Protections OCP
- Fan Speed 2200 RPM
- Protections Surge and Inrush Protection
- Dimensions (L x W x H) 160 x 150 x 86 mm
- ATX Version ATX 12V Ver. 3.0
- Regulatory CCC
- Regulatory CE
- Input Current 12-6A
- Efficiency ≥90% @ Typical Load
- Regulatory EAC
- Regulatory FCC
- Regulatory BSMI
- Regulatory KC
- Hold Up Time ≥ 20ms
- Regulatory UL
- Regulatory TUV
- Regulatory KCC
- Regulatory RoHS2.0
- Regulatory BIS
- Regulatory UKCA

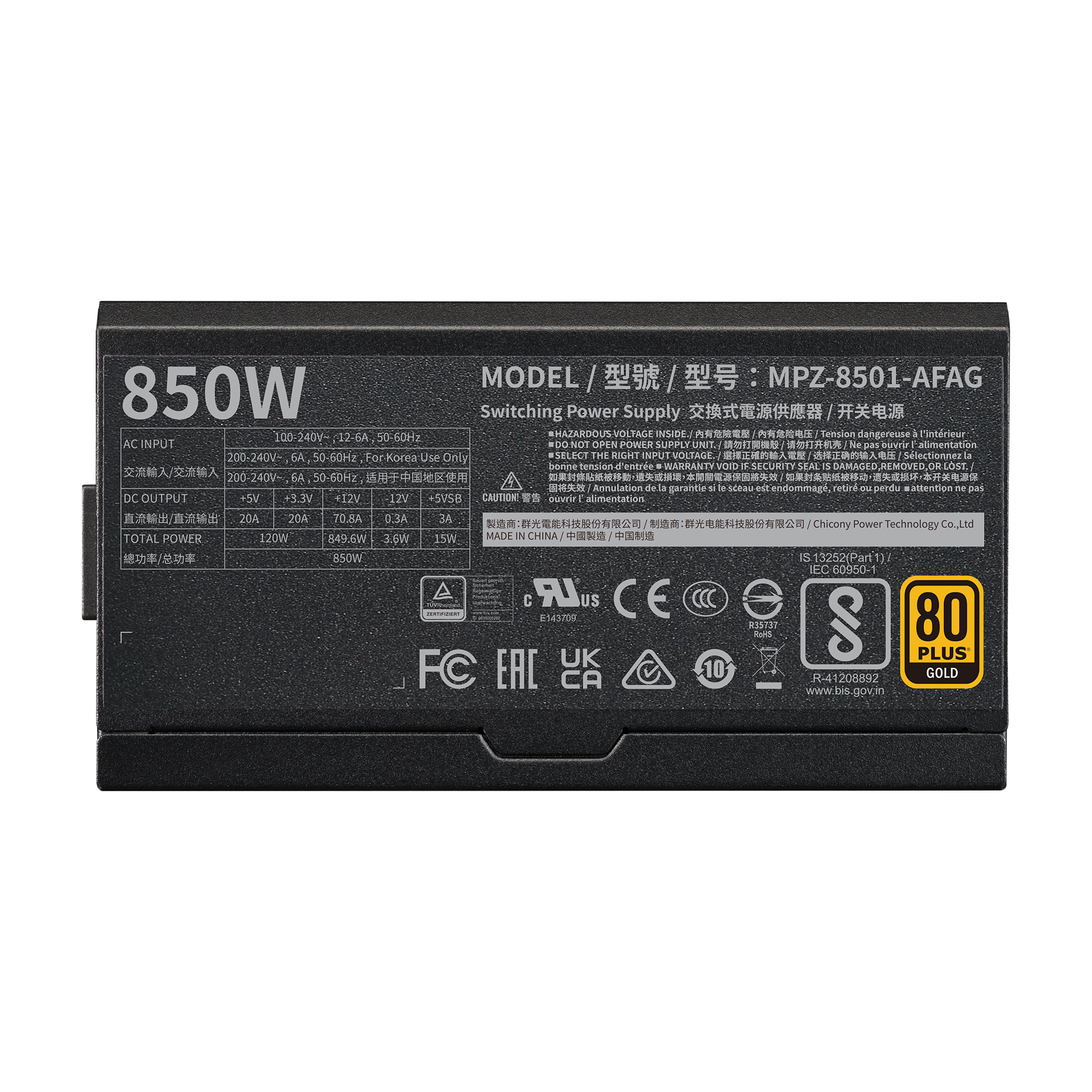

- Model MPZ-8501-AFAG
